A packing station handling several carton sizes needs different tape lengths throughout the day. Estimating every strip by eye makes length selection part of every sealing action. A water-activated tape dispenser with a preset-length function moves that decision into the machine setup, allowing the operator to request tape for a defined closure rather than measure each piece as it is applied.

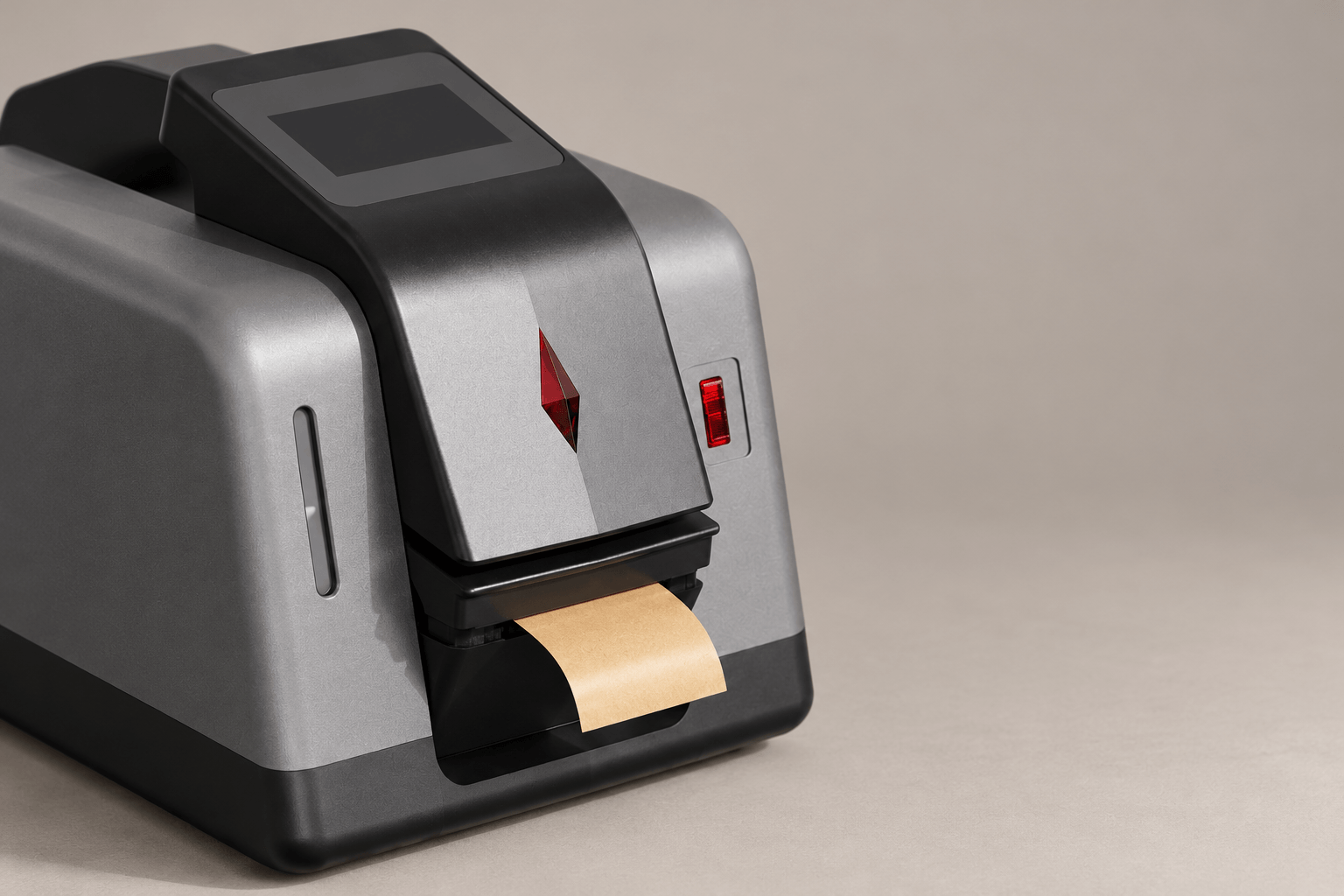

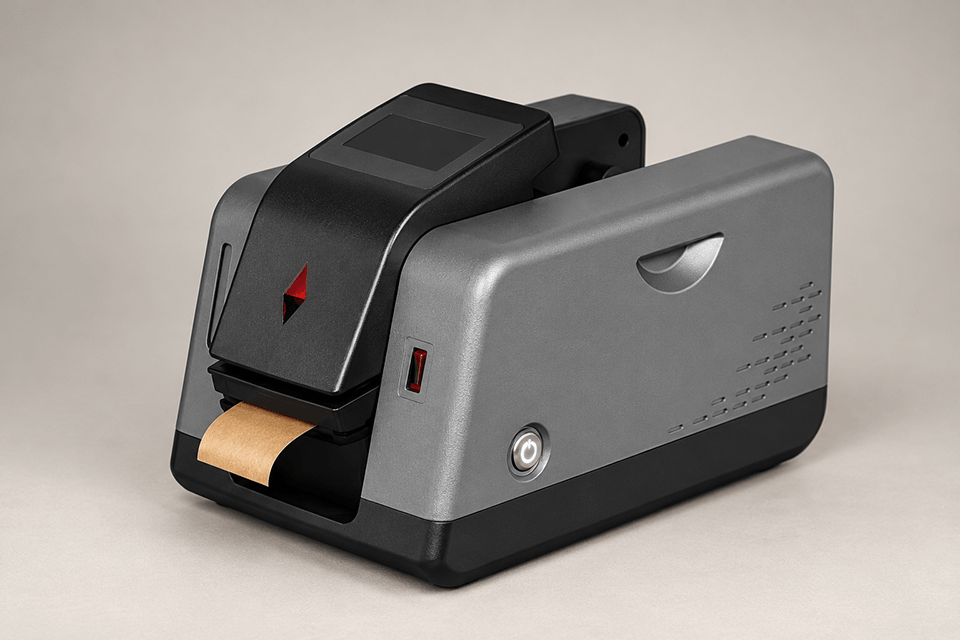

Recycle Paking’s automatic gummed paper tape dispenser combines advance length setting with a hand-sensing dispensing function. The useful application is a clear sequence: choose the required strip length, request the tape, collect it from the outlet, and apply it to the carton. That sequence keeps the machine’s role closely connected to the sealing task.

The machine features that shape the workstation

These details are published on Recycle Paking’s automatic water-activated tape dispenser page. Width and roll diameter describe physical loading requirements; they should be considered alongside the tape specification requested for the machine.

Start with the closure, then set the length

The required strip length follows the carton’s sealing design. For a strip running along the top centre seam and returning down both ends, its target length combines the seam length with the two end returns. Once that geometry is defined, the operator has a meaningful value to set on the dispenser.

For illustration, a 300 mm seam with a chosen 75 mm return at each end gives a target strip length of 450 mm. This example explains the calculation; the required end coverage comes from the approved packing design for the actual shipment. A different seam or closure pattern produces a different target.

Record the chosen length against the relevant carton code in the station’s packing instructions. When that carton reaches the bench, the operator can use the corresponding setting. If the carton or sealing pattern changes, update the target length. This makes the length-setting function part of a repeatable process rather than a value chosen from memory at each order.

Use hand sensing to request the prepared strip

The hand-sensing function provides a way to trigger tape delivery after the required length has been selected. Treat sensing as the request for output, while length selection remains a defined operator task. This distinction is particularly useful at a bench where several carton sizes share one dispenser.

Position the front outlet within the operator’s normal collection area, with a clear movement from collecting the strip to applying it. The carton should already be ready for sealing when tape is requested. Follow the supplied operating instructions for the sensing action and keep hands clear of the cutting mechanism; the sensing feature does not require reaching into the outlet.

Organize mixed-size orders around clear settings

For a run of the same carton, keep the selected length aligned with that closure throughout the run. At a mixed-order station, select the relevant length when the carton size changes. A simple reference beside the packing instructions can connect each box code with its required strip length without relying on an operator to remember all the combinations.

This process can be used whether a station seals occasional mixed orders or repeated batches. The machine supplies the prepared tape, while the operator applies it to the correct seam and completes the closure. Keeping those responsibilities clear helps avoid confusing an automatic dispensing function with automatic carton handling.

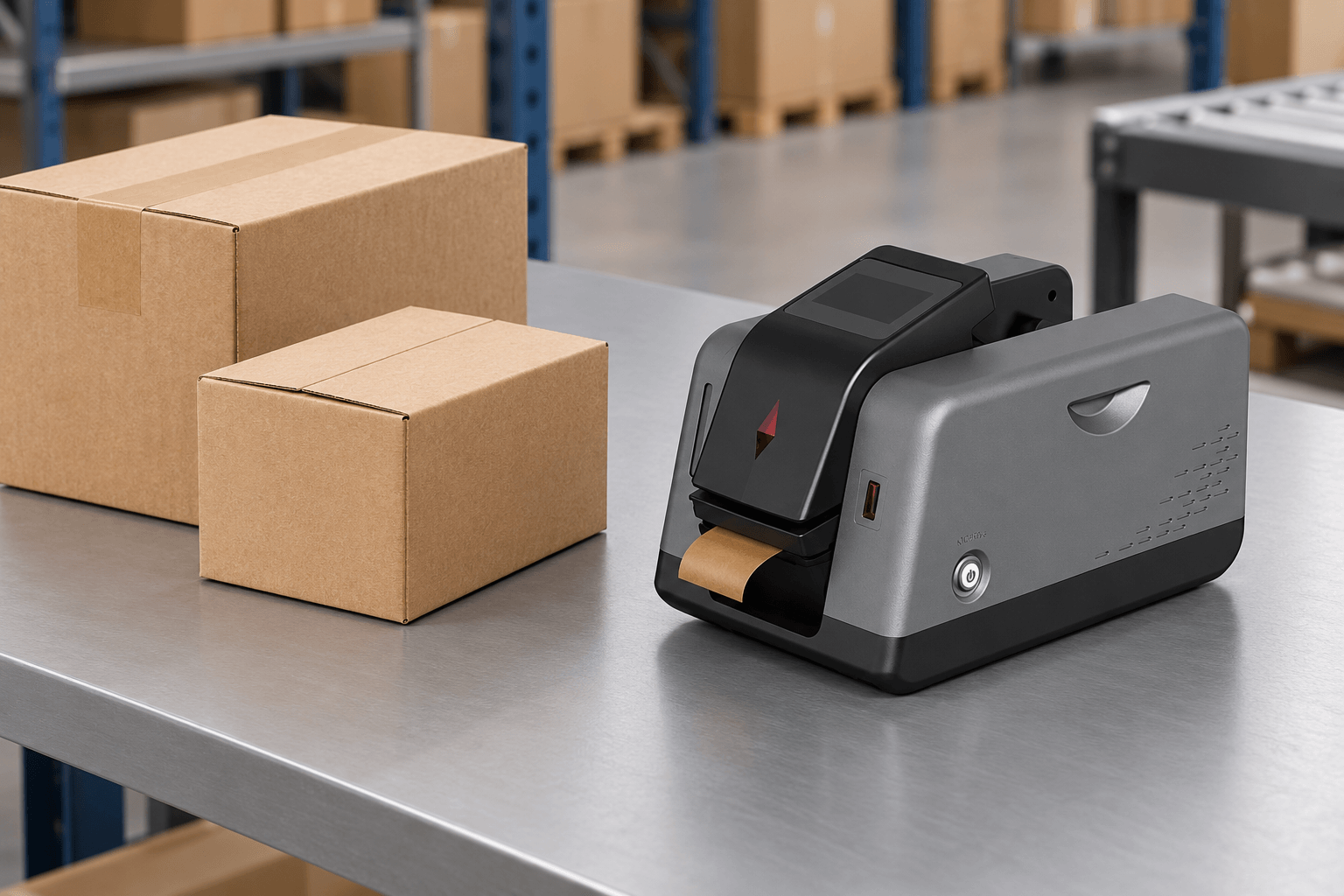

Allow room for loading, water, and finished cartons

The listed machine dimensions give a starting point for bench planning. Leave additional access for loading the roll, replenishing the water supply, and collecting dispensed tape. Keep the outlet area clear of cartons waiting to be packed so the next strip can be collected without moving unrelated items.

The dispenser’s moistening system activates gummed tape before collection. Include routine water replenishment and care of the moistening components in the station’s operating procedure, using the instructions supplied with the equipment. This preparation step belongs alongside length selection and tape application in the sealing sequence.

What preset length adds to carton sealing

The practical value of preset length is that a defined closure can call for a defined strip. Hand sensing then provides a convenient request for that output. The result is an equipment arrangement that can support the carton plan already used by the warehouse. Its effect on the complete sealing cycle will also depend on carton preparation, tape application, and the movement of finished orders.

Explore Recycle Paking’s Paper Tape Solution range for the equipment offering. For a machine quotation, contact Recycle Paking with your carton sizes, required strip lengths, tape width and roll diameter, and destination country. Include a description of the intended sensing workflow so the proposed configuration can be discussed against the actual sealing task.
